Fire Dam Spray

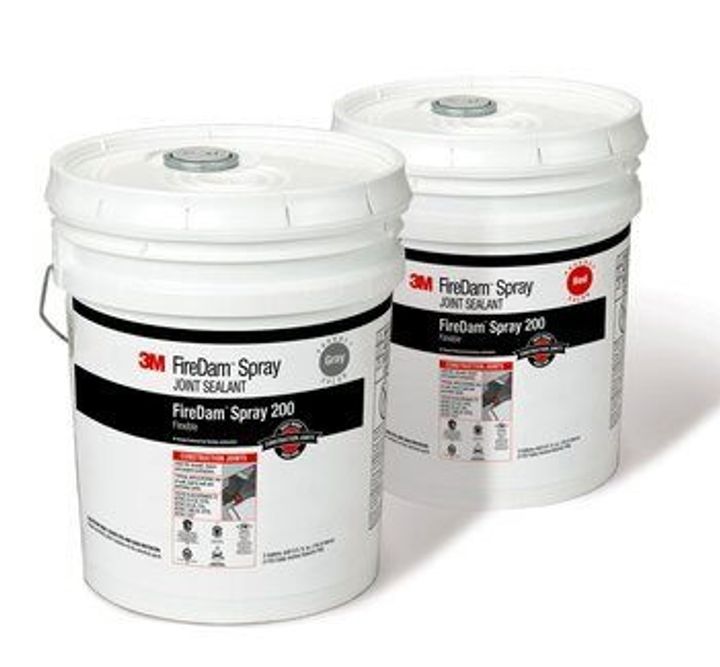

3M™ Spray200
- A faster, simpler and more cost-effective sprayed firestop coating than conventional caulks.

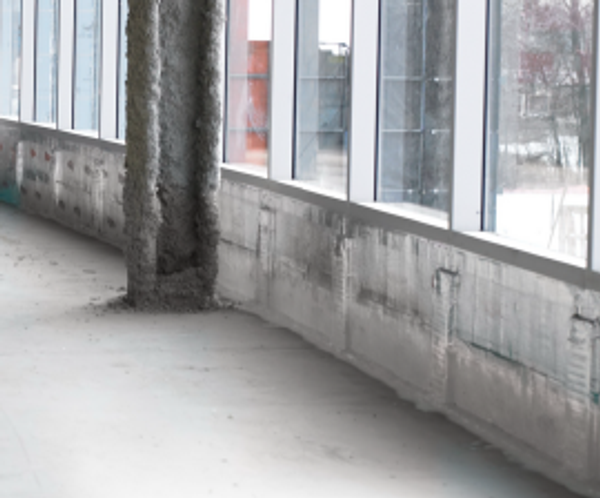

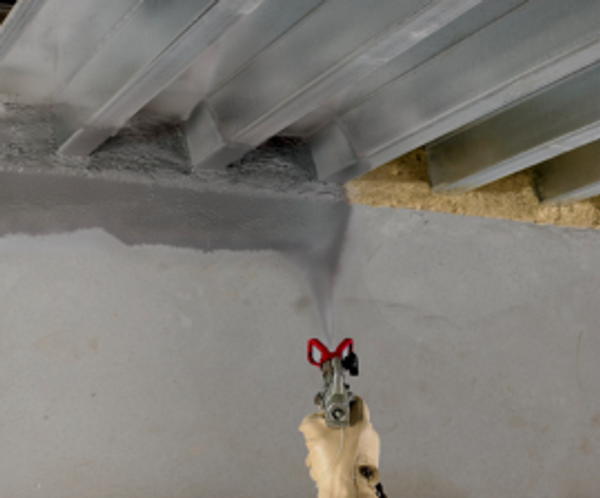

- For top-of-wall and other construction joints.
- ▶ Water-based: dries at room temperature
- ▶ Bonds quickly to surfaces and forms a soft, flexible seal
- ▶ High coverage: shorter installation time
- ▶ Paintable
- ▶ Can be applied with standard spray equipment

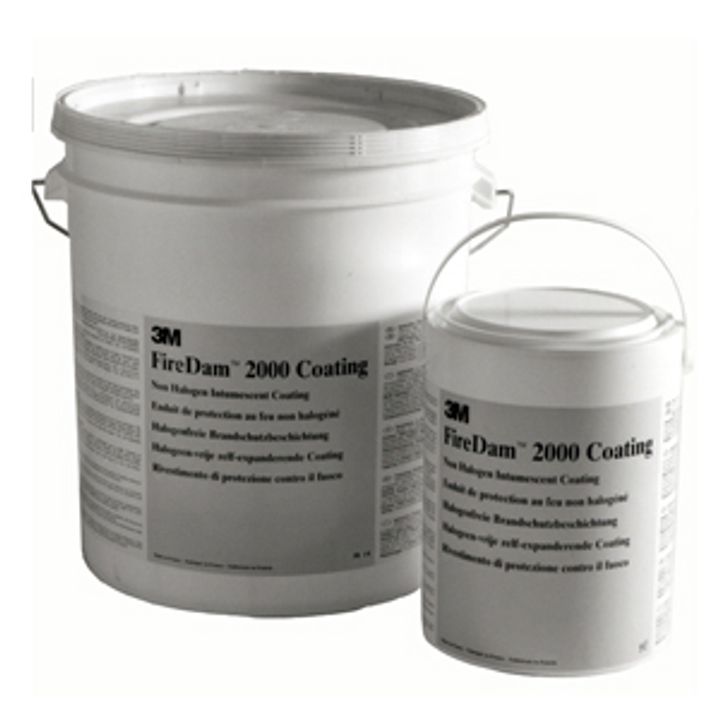

3M™ 2000 Coating
- Excellent fire protection for all kinds of media, mainly used to protect cables. Suppresses the corrosive and toxic gases released by PVC cables in a fire and stops flame spread for up to 3 hours. With Fire™ 2000 Coated Board mineral fiber fire board, it reaches a 4-hour fire rating.
- ▶ Intumescent, with a fire rating of up to 4 hours

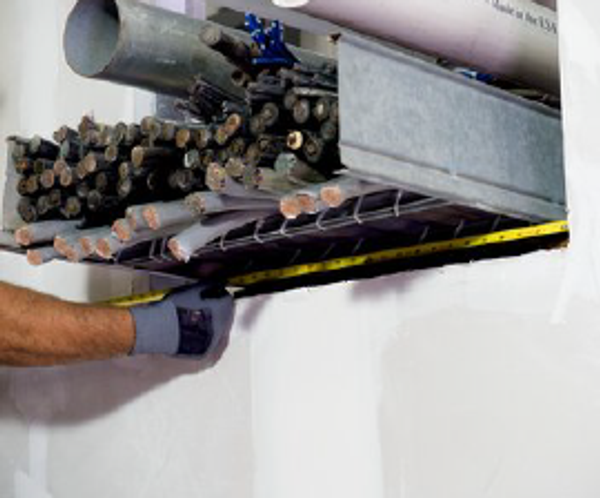

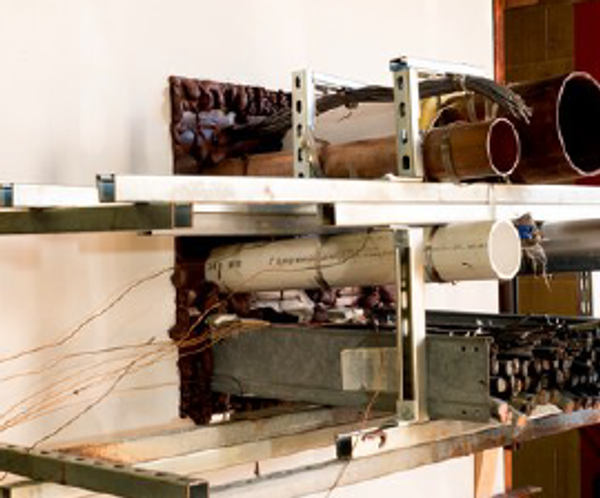

- ▶ For cables and cable trays
- ▶ Halogen-free; soft with good adhesion
- ▶ Apply by spraying, brushing or trowel
- ▶ Complies with IEC331, 332 Part3/BS476 Part 20
FEATURES

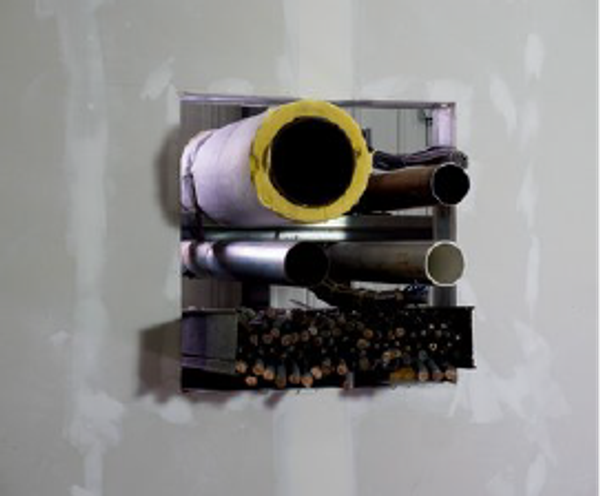

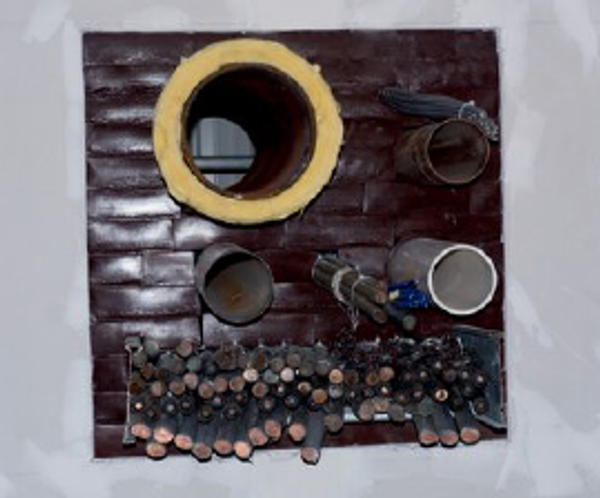

Spray or brush onto both sides of the wall, applying a minimum dry film thickness of 1/16 in (1.6 mm) or a minimum wet film thickness of 1/8 in (3.2 mm) over the fill material, flush with the top of the floor or both faces of the wall. Also spray the penetrating item to a minimum height of 1/2 in (13 mm) and cover at least 1/2 in (13 mm) of the wall surface around the opening on both sides.
PRODUCT DESCRIPTION
A faster, simpler sprayed firestop coating than conventional caulks, for top-of-wall and other construction joints. It bonds quickly to surfaces and forms a soft, flexible seal. Water-based, dries at room temperature, and can be painted.
