Fire Barrier Duct Wrap

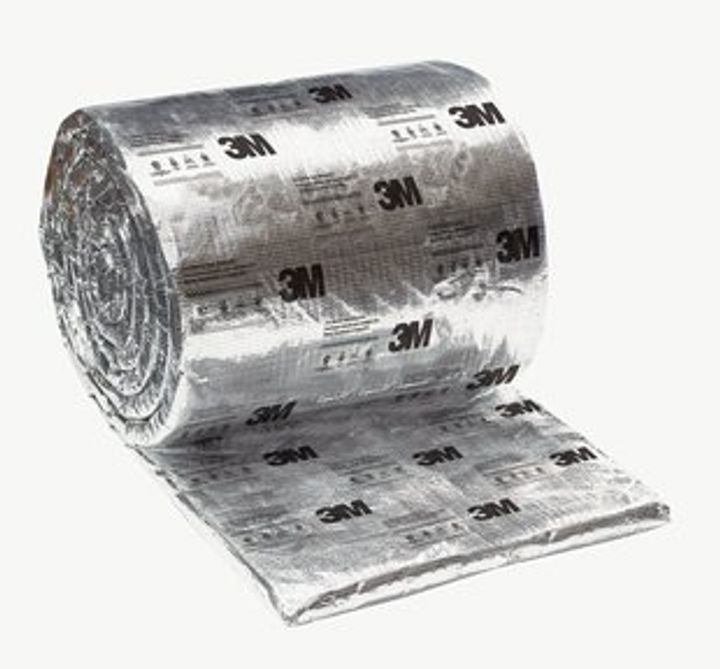

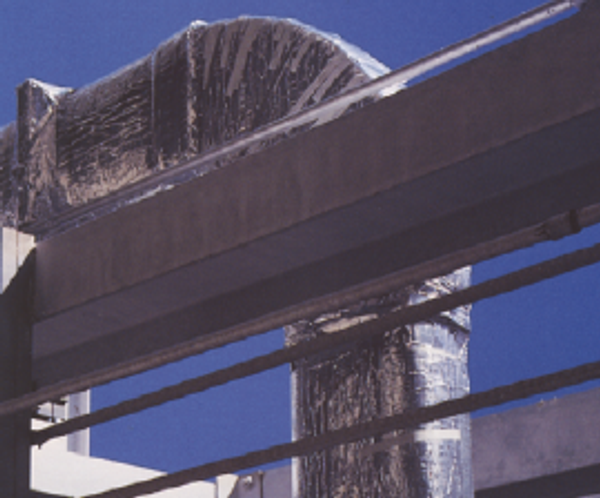

3M™ Duct Wrap 615/615+

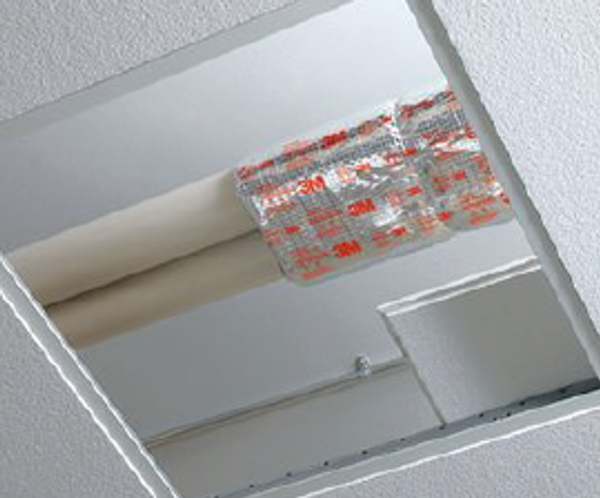

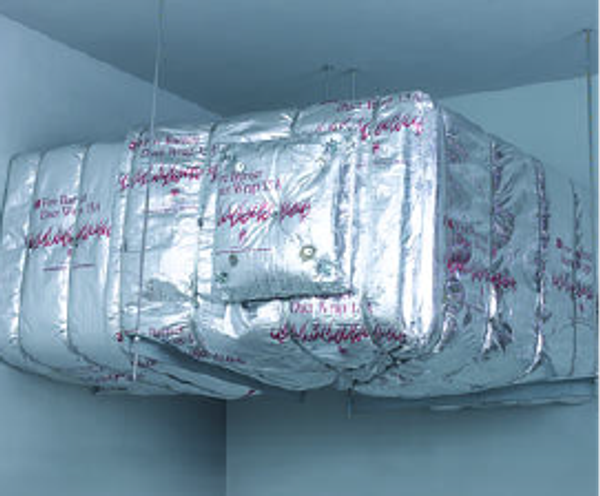

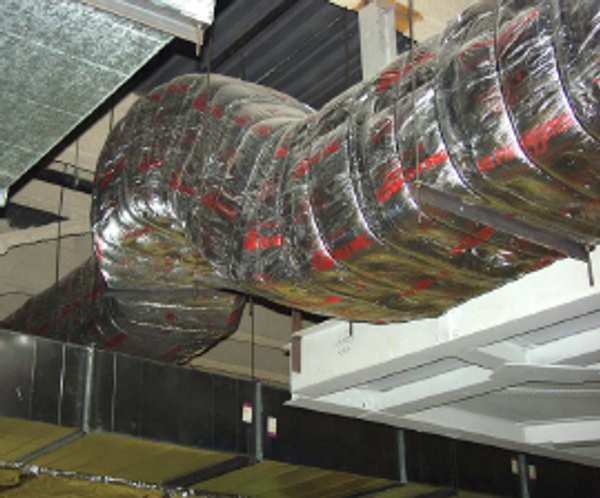

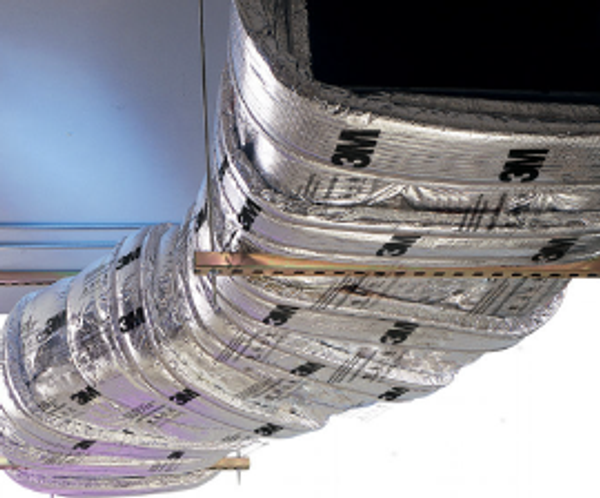

- Patented asbestos-free inorganic fire wrap faced with checkered aluminum foil, 1.5 inches (15A) or 2 inches (20A) thick. Suitable for many uses, including commercial kitchen grease ducts, air ducts, chemical exhaust ducts, and garbage and linen chutes.
- ▶ Passed ASTME2336 and ISO6944 fire tests for grease ducts and air ducts
- ▶ Zero clearance to combustibles saves space
- ▶ Highly flexible and easy to install
- ▶ A special central overlap seam layer increases fire resistance, protects the blanket itself and reduces dust.

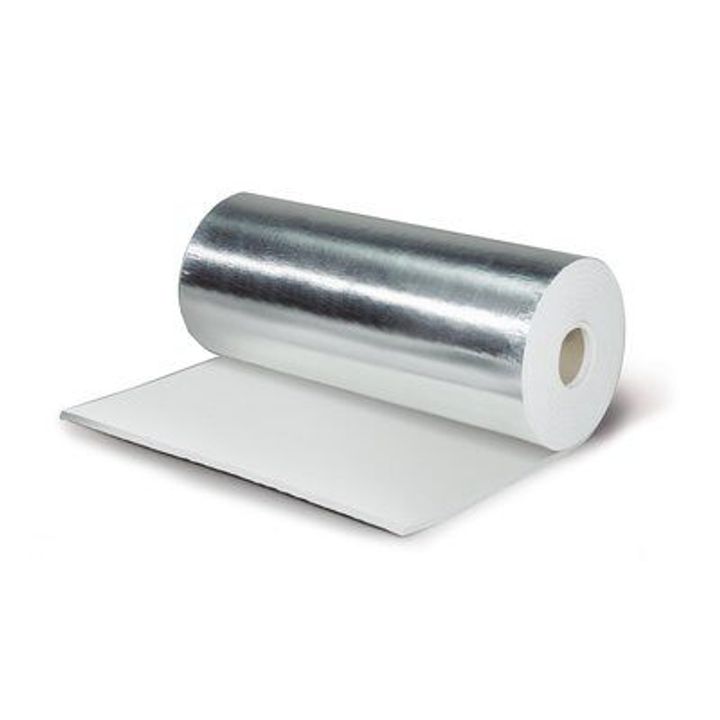

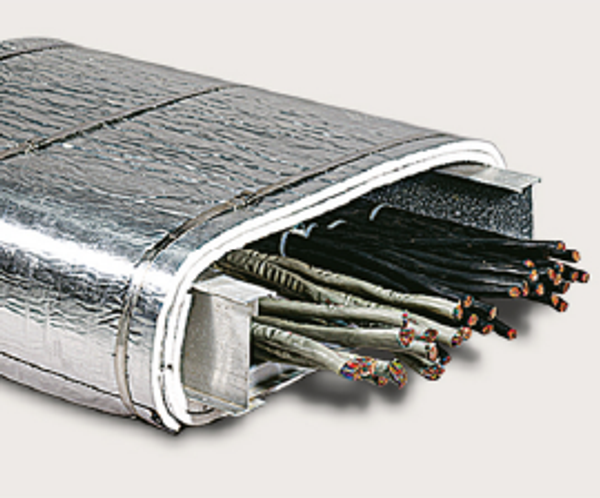

3M™ E5 Series Mat Heat-Absorbing Fire Blanket for Cables

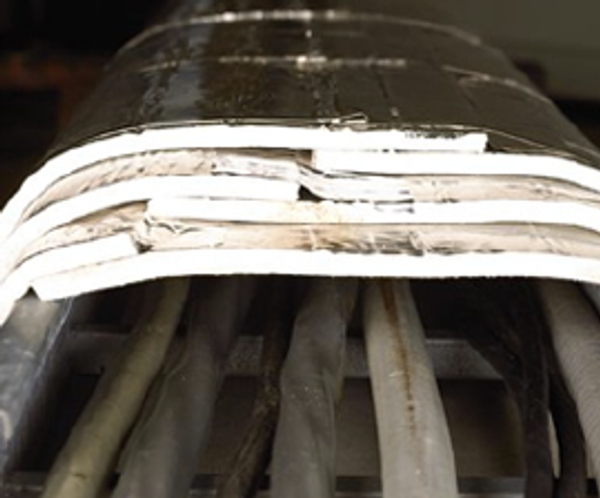

- Patented asbestos-free inorganic fire wrap faced with checkered aluminum foil. Protects single or multiple conduits of 1 inch or larger, flexible non-combustible cables and return air ducts. ▶ Passed UL1709 testing
- ▶ For PVC, CPVC, PE, PB, PP, PVDF and ABS; no gas leakage in a fire.
- ▶ Protects wiring for up to 3 hours
- ▶ Suitable for outdoor use
- ▶ Highly heat-absorbing
- ▶ Can be used on stainless steel or aluminum panels
- ▶ Performs well in high-intensity fires
- ▶ Easy to install in new construction or directly onto existing fire protection systems
3M™ I-10/I-10A Mat Intumescent Flexible Fire Blanket
- A ceramic fiber base that expands into a low-density insulating blanket when exposed to high heat or flame. Used for fire protection or as high-temperature insulation: cable tray fire stops, fire-rated roofs, high-temperature seals for expansion joints, flame-retardant packing for exhaust catalytic converters, and boiler wraps.
- ▶ Expands in one direction only (through its thickness)
- ▶ Suitable for flame-resistant supports
- ▶ Dissipates heat freely before expanding
- ▶ Blocks heat transfer once expanded
- ▶ Lightweight and very flexible
- ▶ Easy to cut to any shape and size
- ▶ Installs easily with no surface preparation
FEATURES
Passed the demanding UL 1978 and AC 101 internal fire tests. Zero clearance to combustibles saves space; highly flexible and easy to install. A special central overlap seam layer increases fire resistance, protects the blanket itself and reduces dust. Its fibers are safe and soluble in lung tissue (EU guidelines 67/548/EWG Note Q), so they are harmless even if the blanket is damaged.
PRODUCT DESCRIPTION
Patented asbestos-free inorganic fire wrap faced with checkered aluminum foil. Protects single or multiple conduits of 1 inch or larger, flexible non-combustible cables and return air ducts. Suitable for PVC, CPVC, PP, ABS and other materials. Highly heat-absorbing and easy to install in new construction or directly onto existing fire protection systems. Passed UL1709 testing.
