Fire Barrier Strip

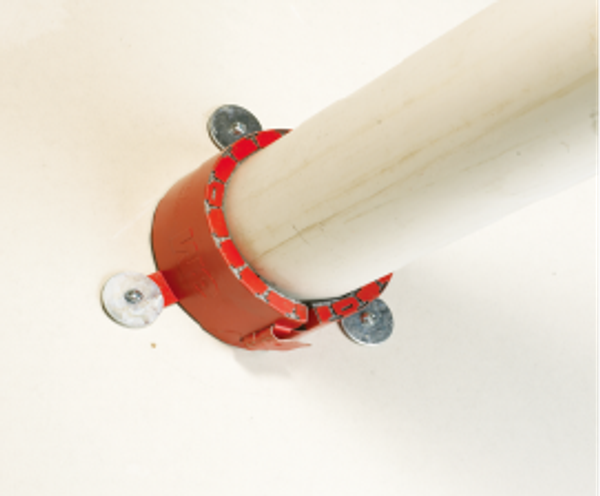

  • 3M™ Fast Anchors Ultra

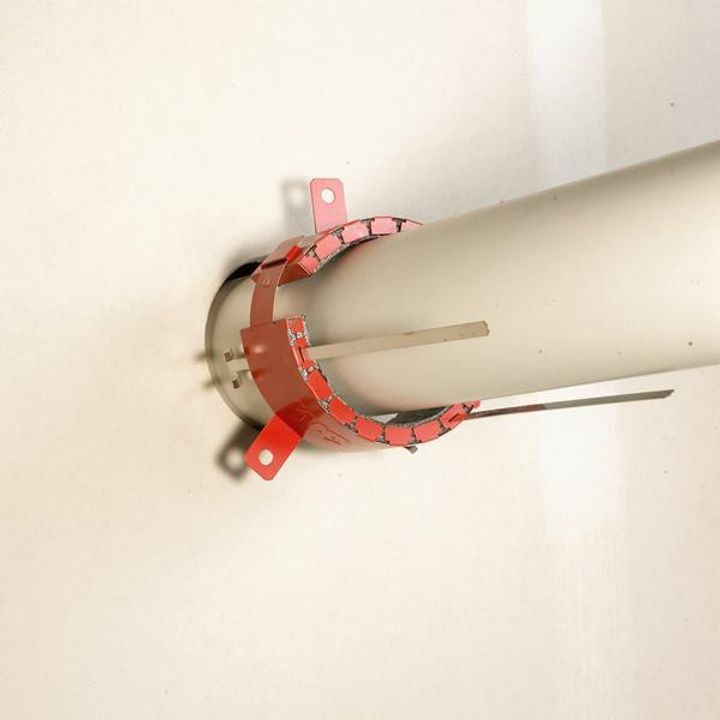

    3M™ Fast Anchors Ultra

    • The fastest, most convenient firestop device for plastic pipes ▶ Installs in one minute
    • ▶ Special snap-lock design: no power tools, screws or washers needed, just a pair of pliers
    • ▶ One-piece construction, both intumescent and heat-absorbing
    • ▶ Flexible; can also be fixed with ordinary bolts

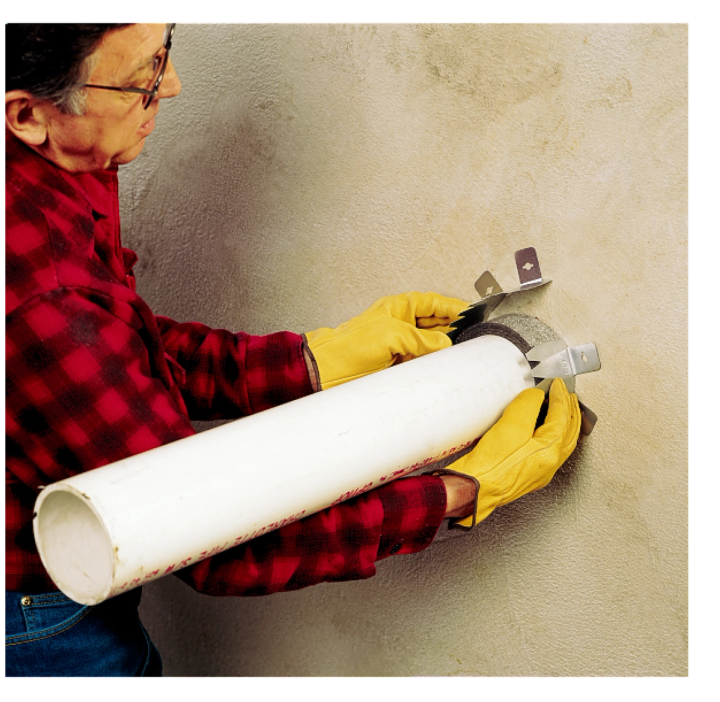

  • 3M™ Ultra GS Wrap Strip

    3M™ Ultra GS Wrap Strip

    • Use with the RC-1 collar set
    • ▶ Both intumescent and heat-absorbing
    • ▶ No cutting waste: use it to the end of the roll (up to 40 feet/12m)
    • ▶ Fits all kinds of standard plastic pipe fittings
  • 3M™ RC-1 Restricting Collar

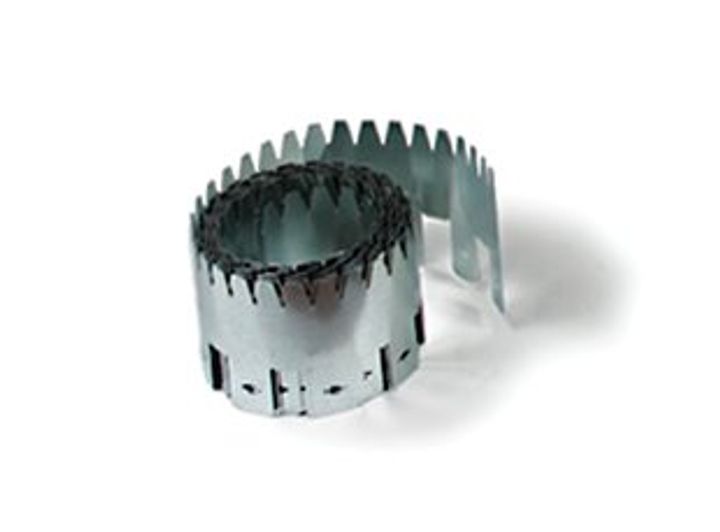

    3M™ RC-1 Restricting Collar

    • Must be used with FS195+ or Ultra GS wrap strip
    • ▶ Formed from 28 gauge steel sheet
    • ▶ 25 feet (7.6m) long, cut to length as needed
    • ▶ Used when the plastic pipe diameter is greater than 4 inches (101mm) and there is no firestop caulk filling the gap around it.

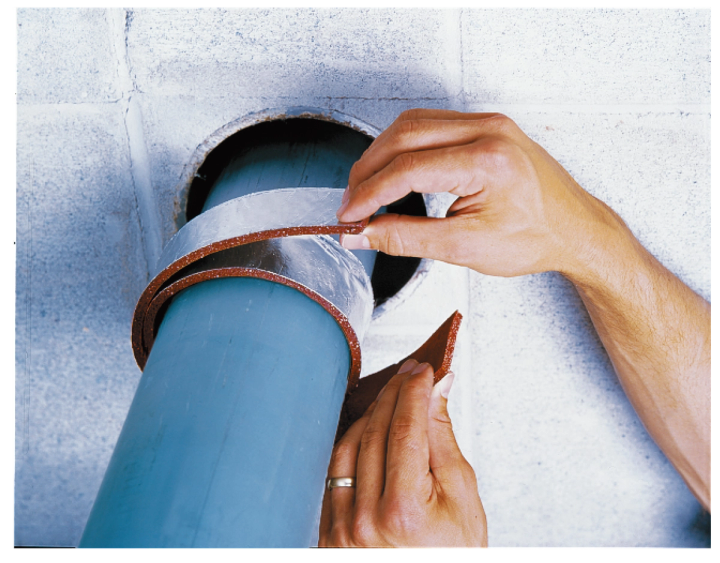

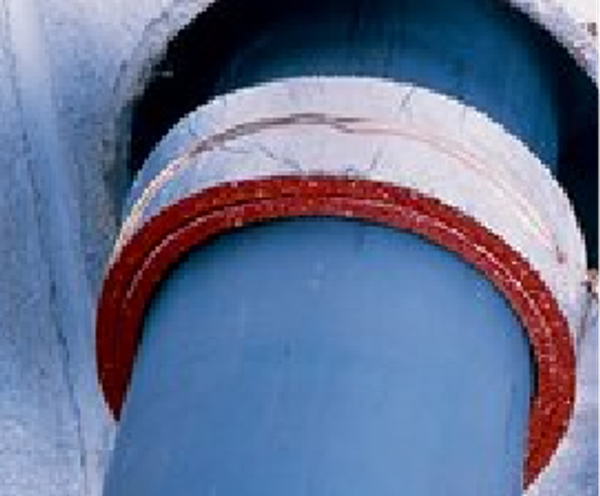

  • 3M™ FS195+ Wrap/Strip

    3M™ FS195+ Wrap/Strip

    • One-piece elastomer combining organic and inorganic materials, faced with aluminum foil on one side
    • ▶ Intumescent, with test reports proving excellent durability
    • ▶ Fits all kinds of irregular shapes
    • ▶ No special tools needed; can be re-opened to run additional cables
    • ▶ 24 inches (609mm) long
    • 1 inch or 2 inches (25mm or 50mm) wide

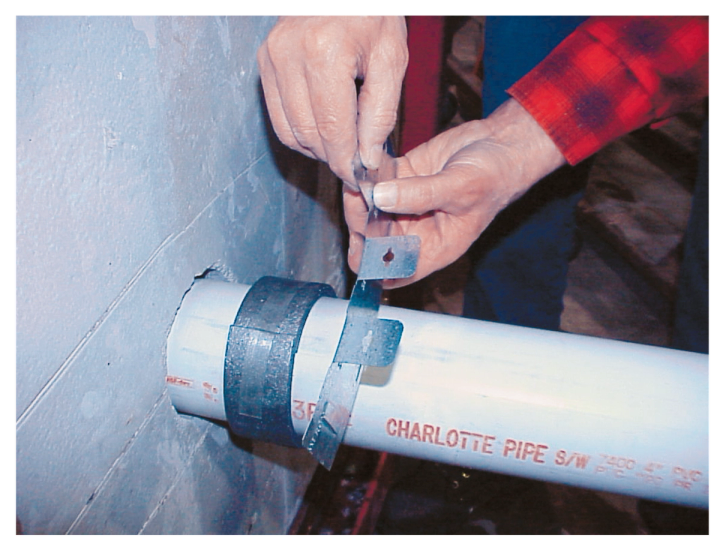

  • 3M™ Ultra RC Pack

    3M™ Ultra RC Pack

    • 3M Ultra RC Pack is used for new installations and renovation projects, on 2 inch (50mm), 3 inch (76mm) and 4 inch (102mm) schedule 40 drain, waste and vent piping systems
    • ▶ Patented Ultra Fast fastening system
    • ▶ Certified intumescent technology quickly closes off burning plastic pipes
    • ▶ UL rated, meeting code requirements and widely recognized
    • ▶ Printed with the 3M logo: genuine manufacturer quality that is easy to identify as a firestop device during inspection.

FEATURES

An elastomer combining organic and inorganic materials, faced with aluminum foil on one side. Intumescent, with test reports proving excellent durability. Fits all kinds of irregular shapes, needs no special tools, and can be re-opened to run additional cables.

PRODUCT DESCRIPTION

Used with the RC-1 collar set. Both intumescent and heat-absorbing. No cutting waste: use it to the end of the roll (up to 12M long). Suitable for all kinds of plastic pipe fittings.
